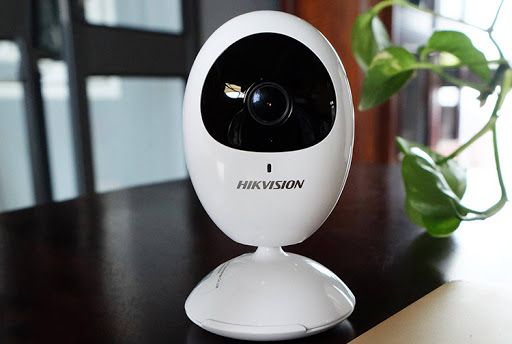

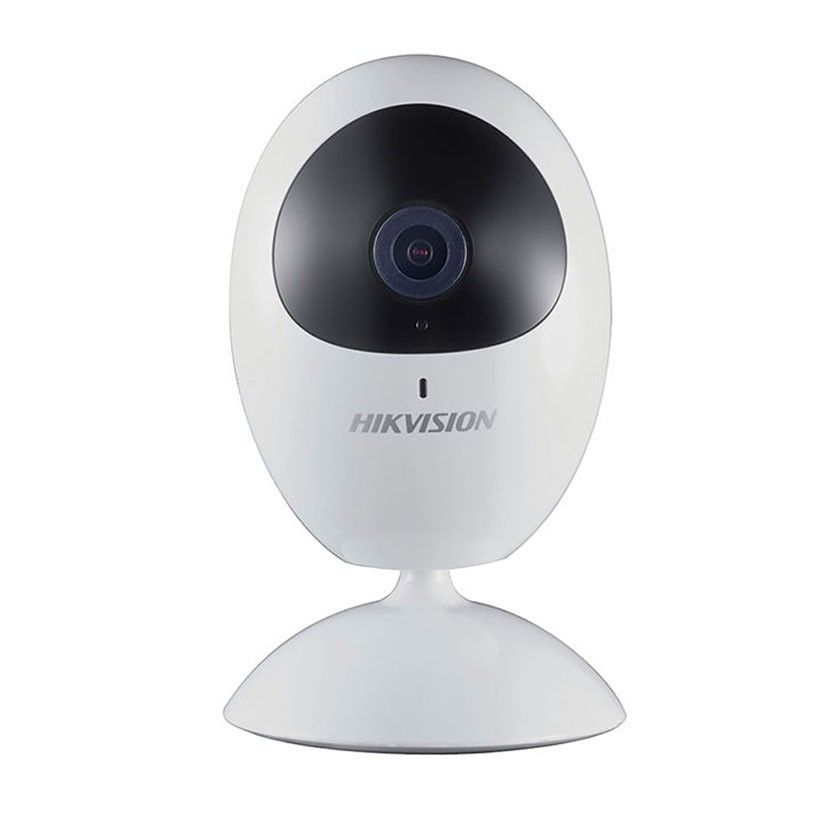

Camera IP Wifi HIKVISION DS-2CV2U01EFD-IW 1.0 Megapixel, F2.8mm, IR 10m, MicroSD, âm thanh 2 chiều

Camera

Image Sensor

1/4" Progressive Scan CMOS

Min. Illumination

0.02Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Support

Iris

F2.0

Lens

2.8mm, horizontal field of view 92°

Lens Mount

M12

Day &Night

IR cut filter with auto switch

DNR

3D DNR

Wide Dynamic Range

Digital WDR

Compression Standard

Video Compression

Main stream: H.264

Sub stream: H.264

H.264 Type

Baseline Profile/Main Profile

Video Bit Rate

32 Kbps – 8 Mbps

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)


Max. Resolution

1280 × 720

Main Stream

Max. Frame Rate

50Hz: 25fps (1280 × 720)

60Hz: 30fps (1280 × 720)

Sub Stream

Max. Frame Rate

50Hz: 25fps (704 × 576, 352 × 288, 640 × 480, 320 × 240)

60Hz: 30fps (704 × 480, 352 × 240, 640 × 480, 320 × 240)

Image Settings

Brightness, saturation, sharpness, contrast are adjustable via client software

Day/Night Switch

Support auto/scheduled

Backlight Compensation

Support, zone optional

Region of Interest

Support 1 fixed region for each stream

Audio

Environment Noise Filter

Support

Audio Input/Output

Support mono soundtrack

Audio Sampling Rate

Max. 16 kHz

Network

Network Storage

Support microSD/SDHC/SDXC card, up to 128 GB local storage

Detection

Motion Detection

Alarm Trigger

Video Tampering Alarm, HDD Full, HDD Error, Network Disconnected, IP Address Conflicted, Illegal Login

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv6, Bonjour, SMTP, 802.1x

Standard

ISAPI

General Function

One-key reset, Anti-flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark

Interface

On-board Storage

Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Audio Interface

1 build-in microphone, 1 build-in speaker

Reset

Yes

Wi-Fi

Wireless Standards

IEEE802.11b, 802.11g, 802.11n

Frequency Range

2.4 GHz - 2.4835 GHz

Channel Bandwidth

20/40MHz Support

Protocols

802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM

Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS

Transfer Rates

11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps

Wireless Range

50 meters (The performance varies based on actual environment)

General

Operating Conditions

-10 °C to 40°C (14 °F to 104 °F), Humidity 95% or less (non-condensing)

Power Supply

DC 5V ± 15 %, micro USB interface

Current

Max. 0.9 A

Power Consumption

Max. 4.5W

IR Range

Up to 10 meters

Material

Plastic

Memory Card

DS-2CV2U01(E)FD-IW: no memory card included

DS-2CV2U01(E)FD-IW/16G-T: includes a 16 GB memory card

DS-2CV2U01(E)FD-IW/32G-T: includes a 32 GB memory card

DS-2CV2U01(E)FD-IW/64G-T: includes a 64 GB memory card

Dimensions

Φ 64 × 106.9 mm (Φ 2.52'' × 4.21'')

Weight

115 g (0.25 lbs)
